Product Overview

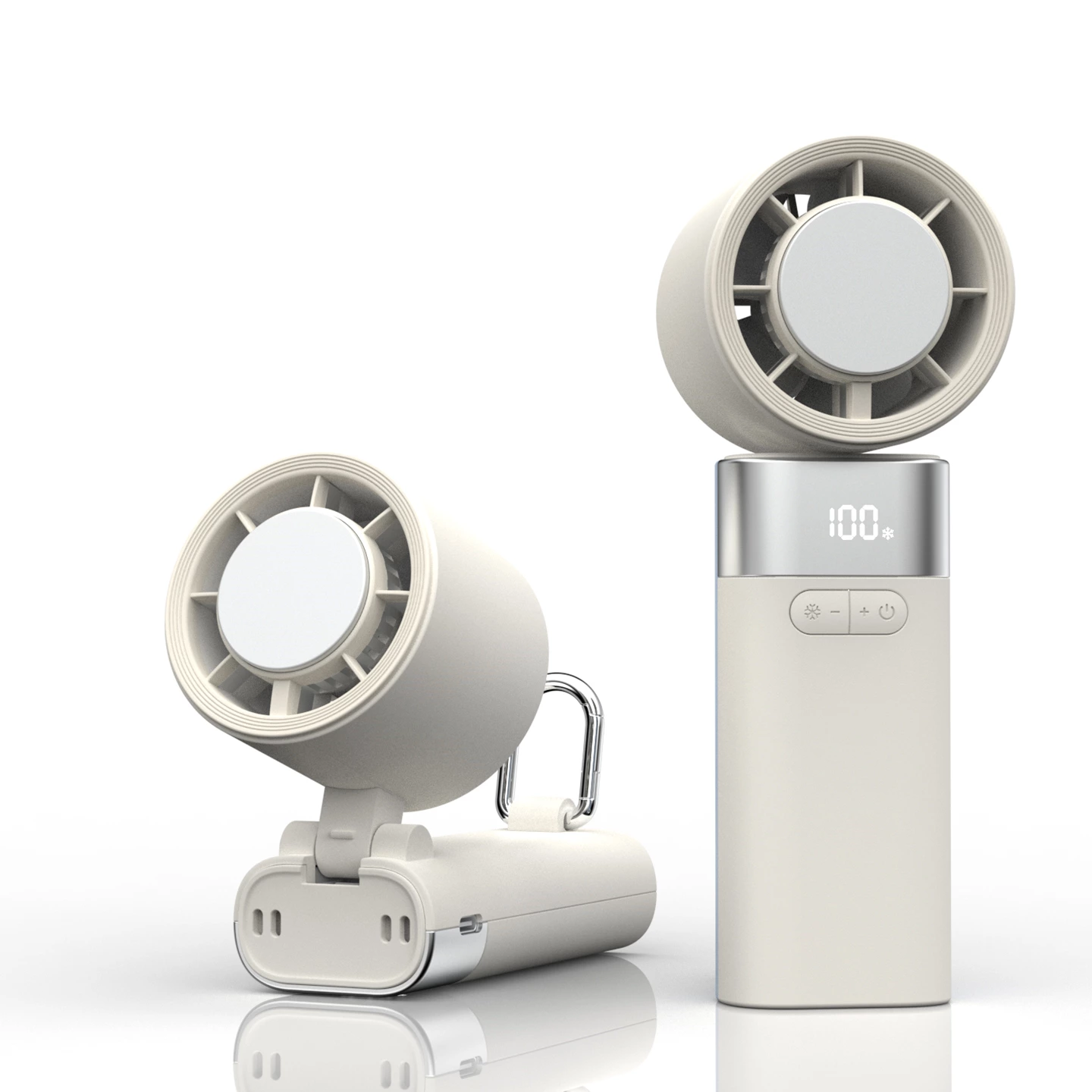

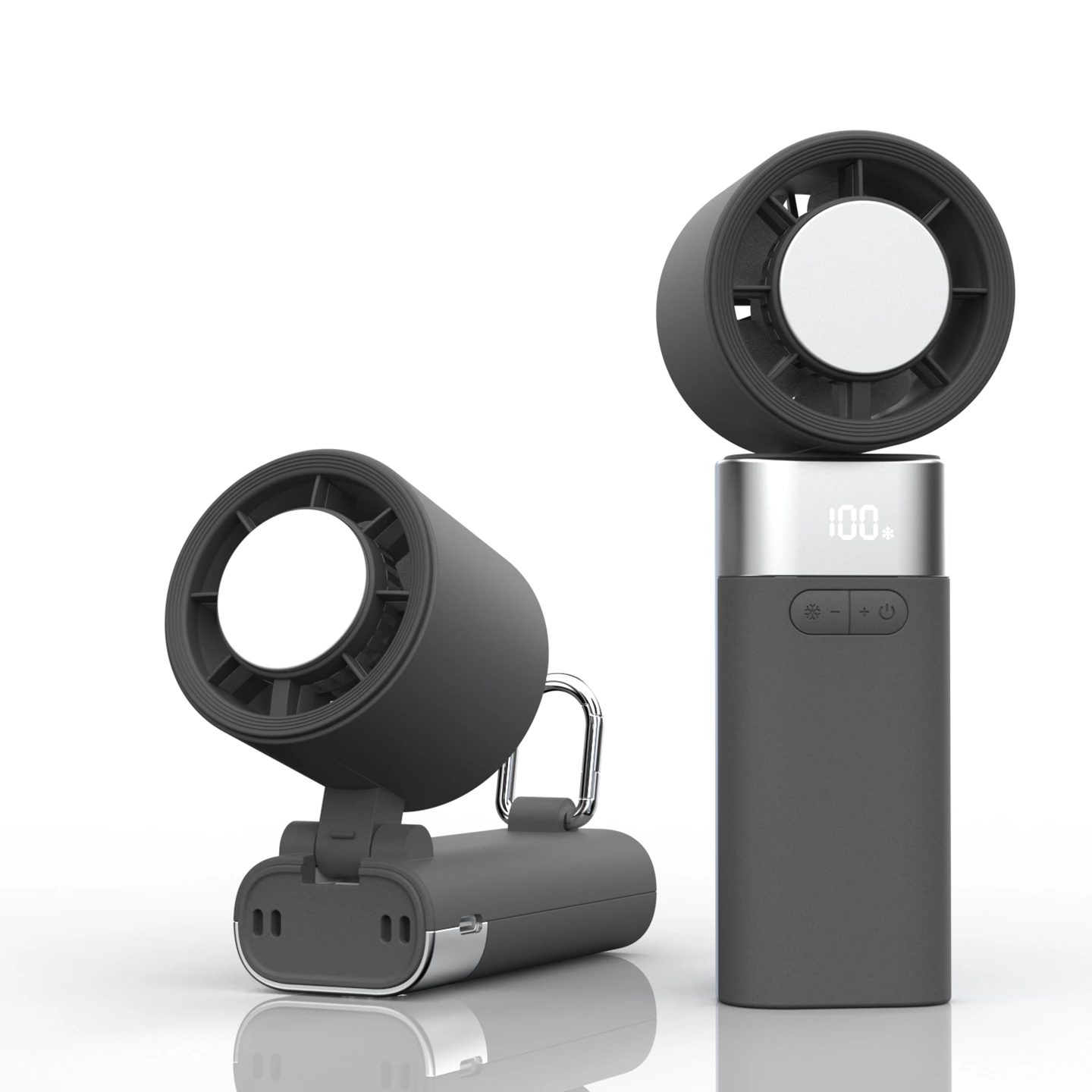

The KC-F54 is a handheld cooling fan with a cold compress mode designed for personal cooling at home, during commutes, while travelling and at outdoor events. It combines a 100-speed stepless airflow system with a dedicated cold compress mode, activated by double-clicking the left control key. A 3,600mAh battery provides up to 9 hours of runtime at speed level 1, and USB-C charging takes about 4 hours. Double-clicking the right key lets users check remaining battery status. The compact ABS body measures 55.5 × 58 × 160 mm and weighs 218 g. The KC-F54 suits consumer electronics distributors, travel accessory retailers, outdoor product retailers and private-label appliance brands.
Key Features
Cold Compress Mode
The KC-F54 includes a cold compress mode that users activate by double-clicking the left control key. This mode adds a targeted comfort function beyond standard fan airflow and gives shoppers a clear reason to choose the model over basic handheld fans. Retailers can demonstrate the feature in store or highlight it in product listings. The exact cooling effect and operating conditions depend on the final product configuration and use environment.
100 Speed Levels with Dual-Key Control
The KC-F54 provides 100 speed levels. A short press on the right key powers on and steps up through 25, 50, 75 and 100, while a short press on the left key steps down and eventually switches the fan off. Long presses on either key adjust speed steplessly. This dual control scheme supports quick preset changes and fine airflow tuning.
High-Speed Motor and Airflow
The KC-F54 uses a motor rated at 9,500 RPM (+10%) and delivers a maximum air speed of 9 m/s (+10%). These specifications support personal airflow across a range of indoor and outdoor settings. Users can move to lower levels when quieter operation or longer runtime is preferred. Actual performance may vary depending on the selected setting, battery condition, ambient temperature and operating environment.
Extended Runtime and USB-C Charging
A 3,600mAh battery gives the KC-F54 a runtime of up to 9 hours at speed level 1. At level 25 runtime is 5.5 hours, at level 50 it is 4 hours, at level 75 it is 2.8 hours, and at level 100 it is 2.2 hours. USB-C charging takes about 4 hours. Actual performance may vary depending on the selected setting, battery condition, ambient temperature and operating environment.
Portable Body and Battery Check
The KC-F54 measures 55.5 × 58 × 160 mm and weighs 218 g, so it fits easily into bags and travel kits. Its ABS housing is suited to daily handling. Double-clicking the right key lets users check remaining battery status during use, helping them plan recharging. USB-C charging aligns the fan with common consumer charging standards.
Product Specifications
| Item | Specification |
|---|---|
| Product Name | Handheld Cooling Fan with Cold Compress Mode |
| Model | KC-F54 |
| Manufacturer | Chaozhou Tongheng Technology Co., Ltd. |
| Launch Year | 2027 |
| Colors | white/black/blue |
| Product Dimensions | 55.5 × 58 × 160 mm |
| Battery Capacity | 3,600mAh |
| Maximum Runtime | Up to 9 hours (speed level 1) |
| Maximum Air Speed | 9 m/s (+10%) |
| Speed Levels | 100 |
Core Selling Points
| Feature | Buyer Benefit |
|---|---|
| Cold compress mode | Adds a demonstrable comfort feature that helps differentiate shelf and online listings |
| 100 speed levels with short-press steps and long-press stepless control | Appeals to users who want precise airflow and supports feature-led retail positioning |
| 3,600mAh battery with up to 9 hours at level 1 | Supports extended personal use on lower settings and reduces recharge frequency |
| 9,500 RPM motor and 9 m/s maximum air speed | Provides clear airflow data for product pages and retail comparisons |
| Compact 218 g ABS body with USB-C charging | Easy to carry, pack and display, with a common consumer charging standard |
| Right-key battery check | Lets users check remaining power during use and plan recharging with less uncertainty |
Designed for B2B Distribution
The KC-F54 is a multi-feature personal cooling fan that can sit within consumer electronics, travel, outdoor and seasonal cooling assortments. Its cold compress mode, 100 speed levels and battery-check function give retail staff and online sellers clear features to explain, while the compact 218 g body and two control keys support straightforward in-store demonstration. The model is suitable for consumer electronics distributors, home appliance retailers, supermarkets and retail chains, travel accessory stores, outdoor product retailers, online marketplaces, promotional gift suppliers and private-label appliance brands. Buyers can position the KC-F54 as a mid-range option alongside basic handheld fans or as part of a summer travel and outdoor accessory set. Color, packaging and branding can be discussed as part of customisation.
OEM and ODM Services
Chaozhou Tongheng Technology Co., Ltd. offers OEM and ODM services for the KC-F54 handheld cooling fan. Buyers can tailor the product for specific markets, retail channels or brand positioning requirements.
Available services include:
- Custom logo printing
- Product color customization
- Retail packaging design
- Instruction manual customization
- Barcode and product labeling
- Charging cable configuration
- Accessories and gift-set packaging
- Function adjustment
- Appearance modification
- New product development
Customization availability and MOQ depend on the selected product configuration, color, logo process, packaging requirements and order quantity.
Frequently Asked Questions
What distinguishes the KC-F54 from a standard handheld fan?
The KC-F54 combines a cold compress mode, 100 speed levels and a right-key battery-check function with a 3,600mAh battery. These features give users more control and a clear additional comfort option compared with basic single-speed handheld fans.
How is cold compress mode activated on the KC-F54?
Cold compress mode is activated by double-clicking the left control key. The mode is intended to provide an additional cooling sensation alongside normal fan use. The precise operating behaviour may depend on the final product version, so buyers should confirm details for their target configuration.
How many speed levels does the KC-F54 offer and how are they adjusted?
The KC-F54 offers 100 speed levels. Short presses on the right key step up through 25, 50, 75 and 100, while short presses on the left key step down and switch the fan off. Long presses adjust speed steplessly in either direction.
What is the maximum runtime of the KC-F54?
At speed level 1 the KC-F54 runs for up to 9 hours. Runtime is 5.5 hours at level 25, 4 hours at level 50, 2.8 hours at level 75 and 2.2 hours at level 100. USB-C charging takes about 4 hours. Actual performance may vary with settings, battery condition and environment.
What are the motor speed and maximum air speed of the KC-F54?
The KC-F54 has a motor rated at 9,500 RPM (+10%) and a maximum air speed of 9 m/s (+10%). Actual performance may vary depending on the selected setting, battery condition, ambient temperature and operating environment.
Can the fan and cold compress mode be used independently on the KC-F54?
The KC-F54 has a dedicated cold compress mode activated by double-clicking the left key. Whether the fan and cold compress mode can run independently depends on the specific product version. Please confirm the required configuration with the manufacturer before ordering.
Do you offer samples and OEM/ODM customisation for the KC-F54?
Yes, sample units are available for qualified buyers. Chaozhou Tongheng Technology Co., Ltd. can support custom logo printing, color customisation, retail packaging, manuals, labels, charging cable configuration, accessories, function adjustment, appearance modification and new product development for the KC-F54.
What certifications are available for the KC-F54?
Available certificates and test reports depend on the product version, battery configuration and destination market. Please contact us for model-specific documentation for the KC-F54 and your target market.
Contact Us
Interested in the KC-F54 handheld cooling fan for your retail programme, distribution range or private-label project? Our team can assist with:
- Product specifications
- Wholesale quotations
- Sample requests
- OEM and ODM customization
- Packaging solutions
- Compliance documents
- Production lead times
Email: inquiry@kinscoter.com
Manufacturer: Chaozhou Tongheng Technology Co., Ltd.
Location: Chaozhou, Guangdong, China
Send us your target market, estimated order quantity and customization requirements to receive a detailed quotation.
