Appearance Prototype vs. Functional Prototype vs. T0 Sample: What Buyers Need to Know
An appearance prototype, an engineering functional prototype and a T0 sample are created at different stages of product development. They may look similar in photographs, but they answer different questions.
-
Appearance prototype: Does the product look and feel right?
-
Engineering functional prototype: Can the proposed structure and functions work together?
-
T0 sample: What must be corrected in the first formal molded parts before production?
Understanding these differences helps buyers review the correct details, avoid unrealistic expectations and approve each stage with greater clarity.
Quick Sample Comparison
| Sample Stage | Main Purpose | Typical Lead Time | Buyer Confirms |
|---|---|---|---|
| Appearance Validation Prototype | Review exterior design, size, proportion and handling | 3–4 working days | Does the product look and feel right? |
| Engineering Functional Prototype | Review internal structure, electronics and agreed functions | 10–15 working days | Can the proposed solution work? |
| T0 Mold Trial Sample | Review the first parts produced by the formal mold | Approx. 40 working days from tooling approval | What needs correction before production? |
These times are typical for a clearly defined project at Chaozhou Tongheng Technology Co., Ltd. Buyer review time, major design changes and unexpected engineering issues are additional.

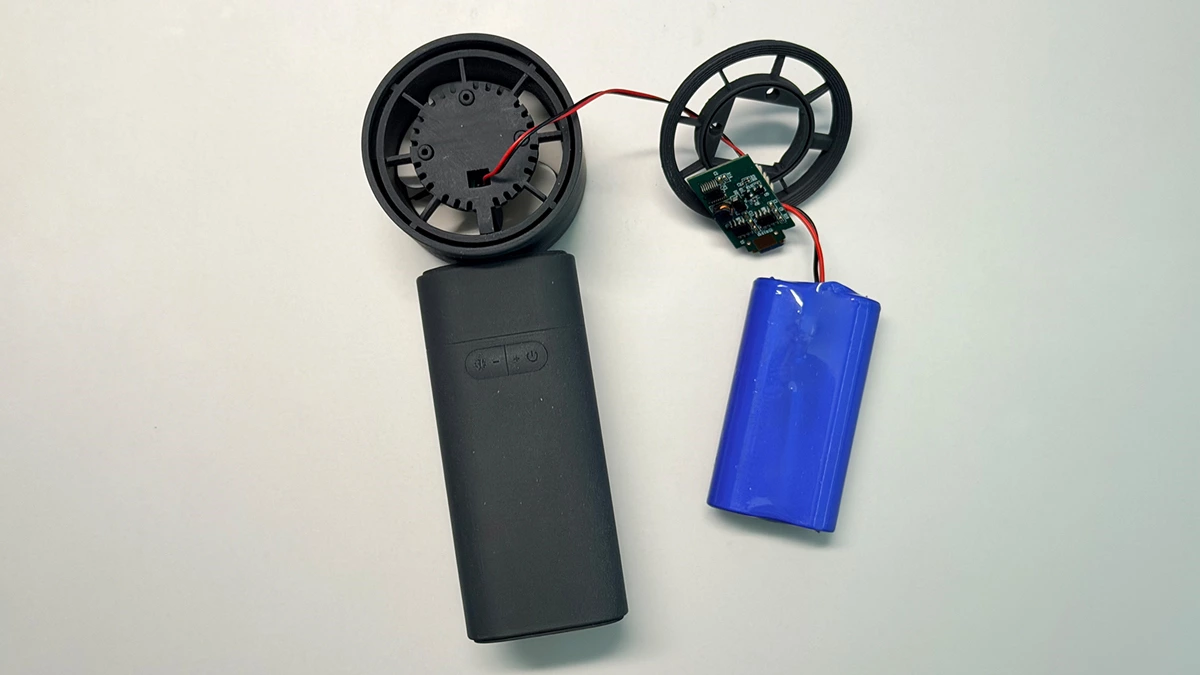

Appearance Validation Prototype
The Appearance Validation Prototype is produced after the 3D model and appearance renderings have been approved. It is normally made through rapid prototyping rather than the final production mold.
Its purpose is to turn the approved design into a physical object that the buyer can hold and review.
| Review Point | What the Buyer Can Check |
| Overall appearance | Shape, proportion and visible design details |
| Physical size | Height, width, thickness and fan-head proportion |
| Handling | Grip, balance and basic ergonomic feel |
| Visible layout | Button, display, charging-port and logo positions |
| Appearance direction | Color direction and surface-finish intention |
What It Does Not Confirm
An appearance prototype does not automatically confirm final airflow, runtime, noise, electronics, production materials or molded-part tolerances.
A project based on a mature product platform may be able to demonstrate selected functions because some existing internal components can be reused. For a completely new product, the first appearance prototype is more likely to be non-functional.
Buyer Approval
The buyer should approve the size, proportion, visible details, handling and overall appearance direction before structural engineering begins.
Typical lead time: 3–4 working days after the 3D model and appearance renderings are approved.

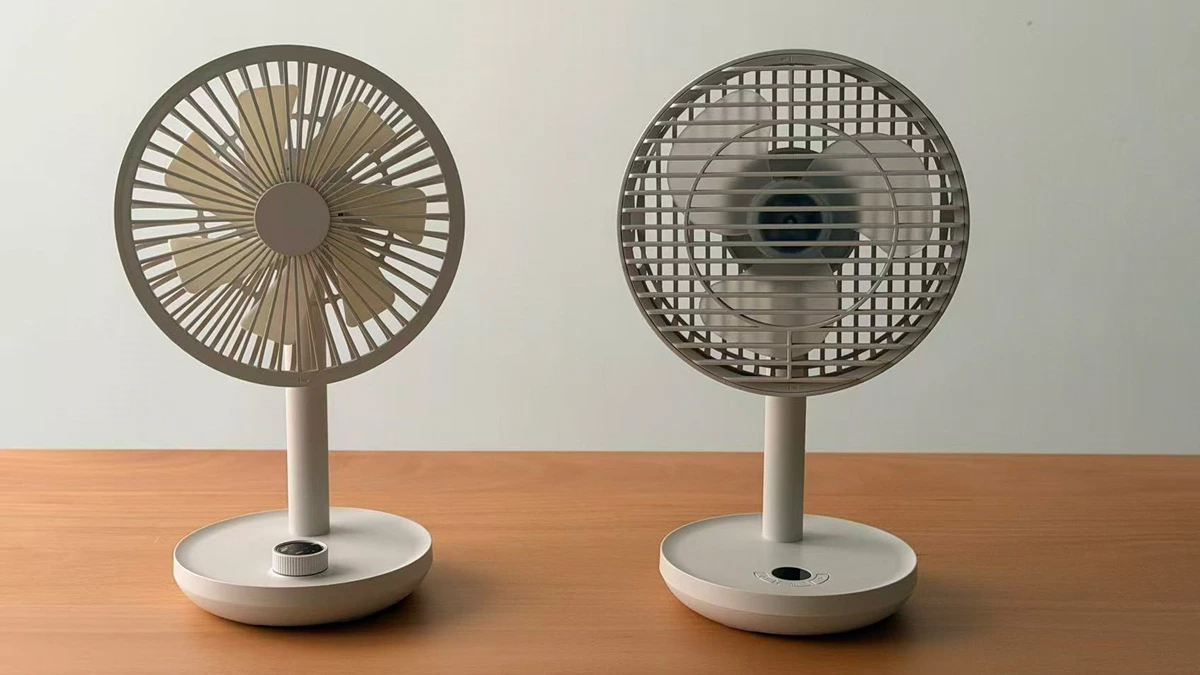

Engineering Functional Prototype
After the appearance is approved, the project moves into structural and electronic engineering. The engineering team develops the internal layout required for the agreed functions.
For a portable fan, this may include the motor, battery, PCB, airflow path, display, buttons, charging port, assembly method and relevant safety structures.
| Review Point | What the Buyer Can Check |
| Internal layout | Whether the main components fit within the approved design |
| Basic assembly | How the main parts connect and fit together |
| Control logic | Buttons, display and agreed operating sequence |
| Agreed functions | Functions included within the defined prototype scope |
| Engineering direction | Issues that should be corrected before tooling |
What It Does Not Confirm
The engineering functional prototype is not yet a production sample. Its enclosure may still be made using rapid-prototyping processes, so material behavior, surface quality, tolerances and structural response may differ from final injection-molded parts.
Functional results should therefore be reviewed within the agreed prototype scope. Final production performance still needs to be verified with molded parts and the approved production configuration.
Buyer Approval
The buyer should review the agreed functions, controls, fit, assembly concept and remaining limitations. Required corrections should be incorporated before the buyer formally authorizes tooling.
Typical lead time: 10–15 working days after appearance approval.

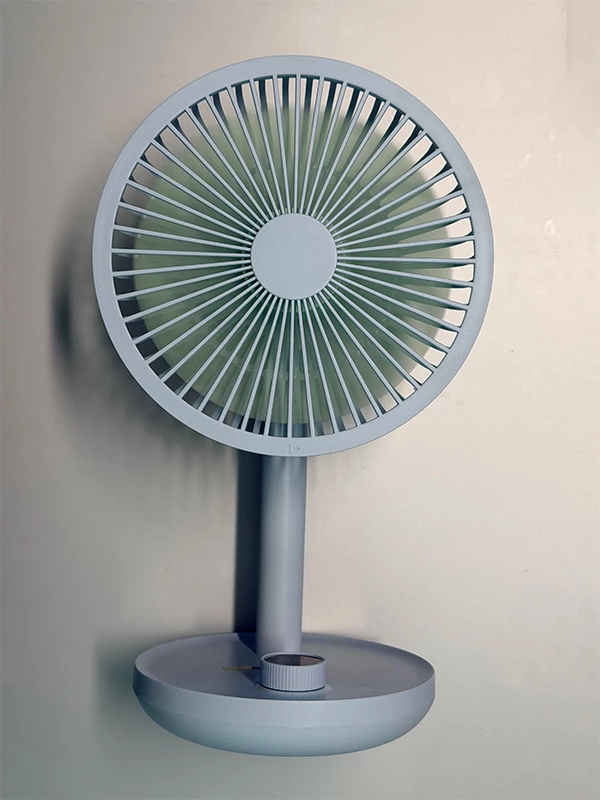

T0 Mold Trial Sample
After the engineering solution and final structure have been approved, formal tooling begins. The T0 sample is produced during the first trial of the new production mold.
Unlike the earlier prototypes, T0 uses actual injection-molded parts from the formal tooling. It provides the first opportunity to evaluate how the designed parts behave in the intended molding and assembly process.
| Review Point | What the Team Can Check |
| Mold filling | Whether the plastic parts form correctly |
| Dimensions | Key dimensions, shrinkage and deformation |
| Visible quality | Surface marks, sink marks, weld lines and other issues |
| Fit and assembly | Whether molded parts fit and assemble as intended |
| Tolerances | Whether important gaps and relationships require correction |
What It Does Not Confirm
T0 is not necessarily the final approved production sample. The first mold trial often reveals cosmetic, dimensional, molding or assembly issues that need correction.
Depending on the findings, the mold, product structure or process settings may need to be adjusted before T1 or T2 samples are produced.
Buyer Approval
The buyer and manufacturer should review the T0 findings, define the required corrections and confirm which items must be rechecked during the next mold trial.
Typical lead time: Approximately 40 working days from formal tooling approval to the first T0 mold trial samples.
The Main Difference in One Table
| Question | Appearance Prototype | Engineering Functional Prototype | T0 Sample |
| Is the exterior direction approved? | Main purpose | Already approved | Rechecked on molded parts |
| Can it demonstrate functions? | Not necessarily | Yes, within the agreed scope | Functions can be tested using molded parts |
| Does it use final molded housing parts? | No | No | Yes |
| Can it confirm production tolerances? | No | No | Initial evaluation only |
| Is it ready for mass-production approval? | No | No | Not necessarily |
Platform Modification vs. Completely New Product
The maturity of an early prototype also depends on the development route.
Platform-Based Modification
A modified product may reuse a proven motor, battery, PCB, airflow path and part of the internal structure. Because these elements already exist, selected functions may be demonstrated earlier.
Completely New Product
A completely new product begins with more unknowns. Its first appearance prototype may confirm only the exterior because the internal structure, electronics and component layout have not yet been developed.
Buyers should therefore ask what each sample is intended to demonstrate instead of judging it only by how complete it looks.
OEM Development Timeline from Appearance Approval to Mass Production
The three sample stages are part of a wider development process.
| Development Stage | Typical Lead Time |
| Appearance Validation Prototype | 3–4 working days |
| Structural Design and Engineering Functional Prototype | 10–15 working days |
| Formal Tooling and T0 Trial | Approx. 40 working days |
| T1/T2 Optimization to Mass Production | Approx. 15 working days |
Under a normal revision path, the process requires approximately 53–59 working days from approved appearance files to T0 and approximately 68–74 working days to mass production.
This estimate does not include:
-
Buyer review and approval waiting time
-
Major changes after an approval stage
-
Significant tooling or structural issues
-
Additional compliance, packaging or material delays
Changing the overall dimensions, airflow structure, motor, battery space, PCB, display, controls or assembly method after approval may require additional engineering work and a revised schedule.
Approval Checklist for Buyers
| Stage | Buyer Should Confirm |
| Appearance Prototype | Size, proportion, handling, visible details and appearance direction |
| Engineering Functional Prototype | Agreed functions, controls, fit, assembly direction and required corrections |
| T0 Sample | Molded-part issues, fit, dimensions, assembly and the T1/T2 correction list |
| Final Production Approval | Golden sample, final specifications, approved materials, packaging and quality requirements |
Each sample should be treated as a separate approval gate. Approving one stage authorizes the manufacturer to invest time and resources in the next stage.
Frequently Asked Questions
Is an appearance prototype a working sample?
Usually not. It mainly confirms exterior design, size, proportion and handling. A platform-based project may demonstrate selected functions if proven internal components can be reused.
Is an engineering functional prototype the same as a production sample?
No. It is used to evaluate the proposed structure and agreed functions, but its enclosure and tolerances may still differ from production-molded parts.
Is T0 the final approved sample?
No. T0 is the first formal mold trial sample. Mold correction and additional T1 or T2 trials may be required before final approval.
When should the buyer authorize tooling?
Tooling should begin after the engineering functional prototype has been reviewed, required revisions have been incorporated and the final structure and tooling scope have been confirmed.
Treat Every Sample as a Different Decision Point
The Appearance Validation Prototype, Engineering Functional Prototype and T0 Mold Trial Sample are not interchangeable deliverables.
-
The appearance prototype confirms what the product should look and feel like.
-
The engineering functional prototype confirms whether the proposed solution can work.
-
The T0 sample begins the validation of formal molded parts.
When buyers understand the purpose and limitations of each sample, approvals become clearer and development decisions are easier to manage.
