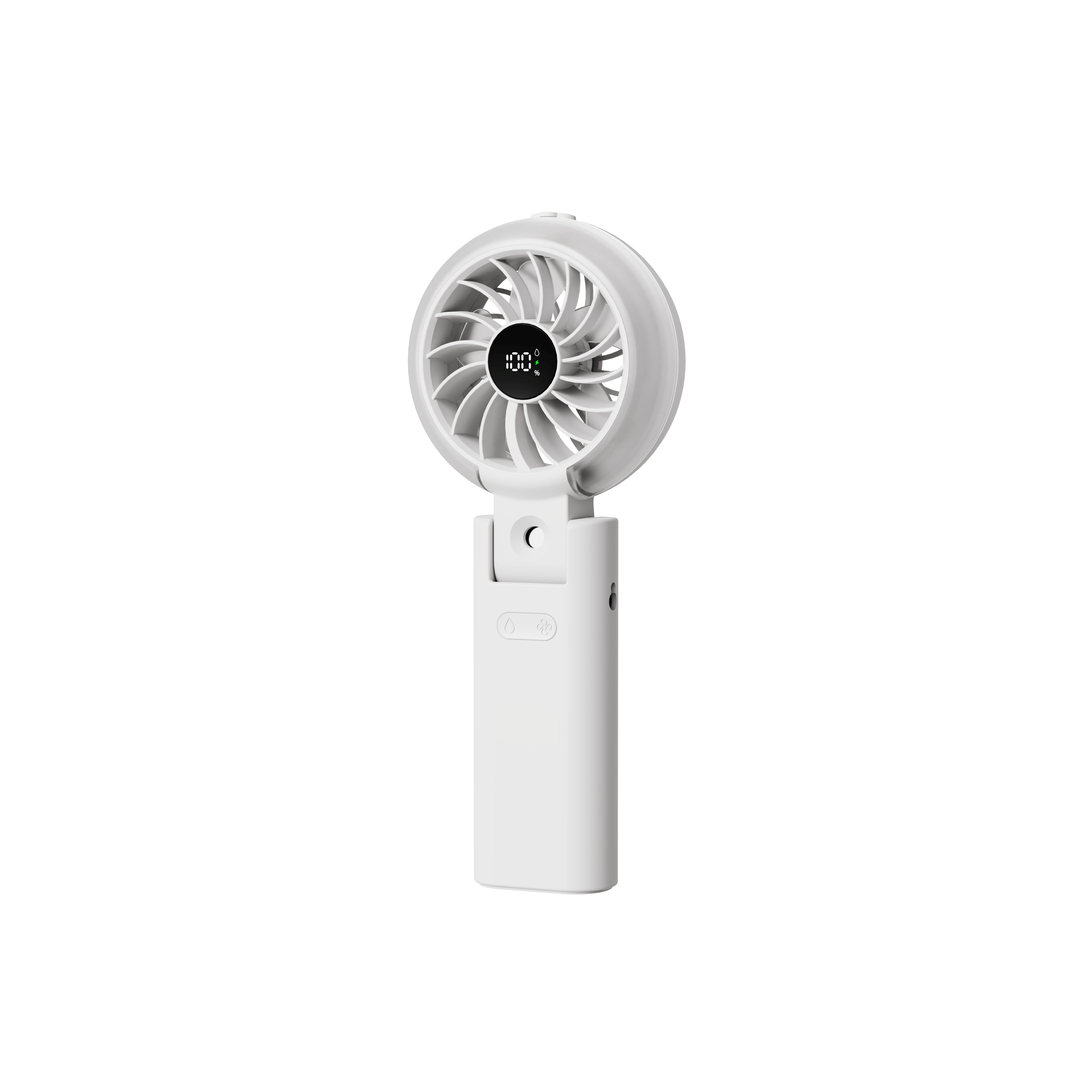

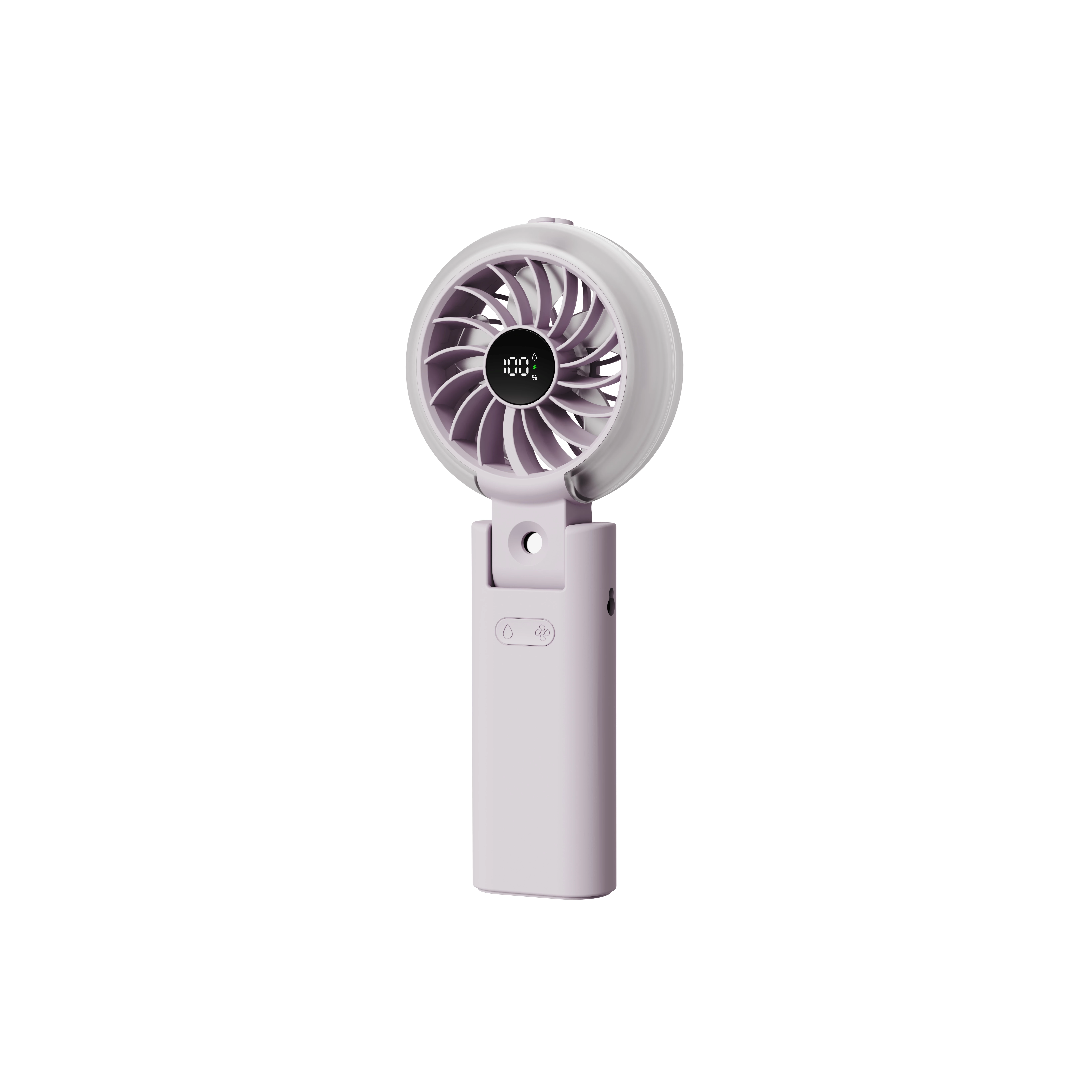

KC-F19 Foldable Handheld Misting Fan
- Launch Year
- 2027
- Available Colors
- White, Light Blue, Light Purple
- Product Size(cm)
- 8.7*3.3*20.3
- Weight(g)
- 216
- Capacity(ml)
- 25
- Battery Capacity(mAh)
- 3600
- Power Specification
- DC5.0V/2.0A
- Rated Power(W)
- ≤10W
- Material
- ABS
Adjustable personal airflow, two misting modes and a foldable design provide portable cooling for travel, commuting and daily use.
Product Overview
The KC-F19 is a foldable handheld misting fan designed for travel, commuting, outdoor activities and personal cooling. It combines 100-level airflow adjustment with continuous and intermittent misting modes, allowing users to select an appropriate cooling experience for different conditions. A 25 mL water tank provides approximately 15–32 minutes of misting, while the 3,600 mAh battery supports up to 10 hours of fan operation. The digital display presents operating information, and the foldable body can be paired with a lanyard for easier carrying. The KC-F19 is suitable for distributors, appliance retailers, online sellers, promotional programs and private-label portable fan collections.
Key Features
100-Level Variable Airflow Control
The KC-F19 provides 100 airflow settings for more precise adjustment than conventional fans with only a few fixed speeds. The supplied data records motor speeds from approximately 3,500 r/min at the 1% setting to 6,200 r/min at the 100% setting. Maximum air speed is To Be Confirmed.
Actual performance may vary depending on the selected setting, battery condition, ambient temperature and operating environment.
Continuous and Intermittent Misting Modes
Two misting modes allow users to choose continuous spray for direct cooling or intermittent spray for controlled water use. The integrated 25 mL water tank provides an approximate misting duration of 15–32 minutes. Continuous misting includes a 20-minute automatic shut-off protection function.
Actual performance may vary depending on the selected setting, battery condition, ambient temperature and operating environment.
3,600 mAh Battery with Up to 10 Hours of Runtime
The built-in 3,600 mAh battery provides up to 10 hours of fan operation at the 1% setting. Reported runtimes are approximately 8.5 hours at 20%, 6 hours at 40%, 4.5 hours at 60%, 3.5 hours at 80% and 2.5 hours at 100%.
Actual performance may vary depending on the selected setting, battery condition, ambient temperature and operating environment.
Digital Operating Display
The integrated digital display allows users to check the fan’s operating status more conveniently. It also creates a visible feature for retail demonstrations, online listings and livestream presentations. The exact numbers, icons and operating information shown on the final KC-F19 display are To Be Confirmed according to the selected product configuration.

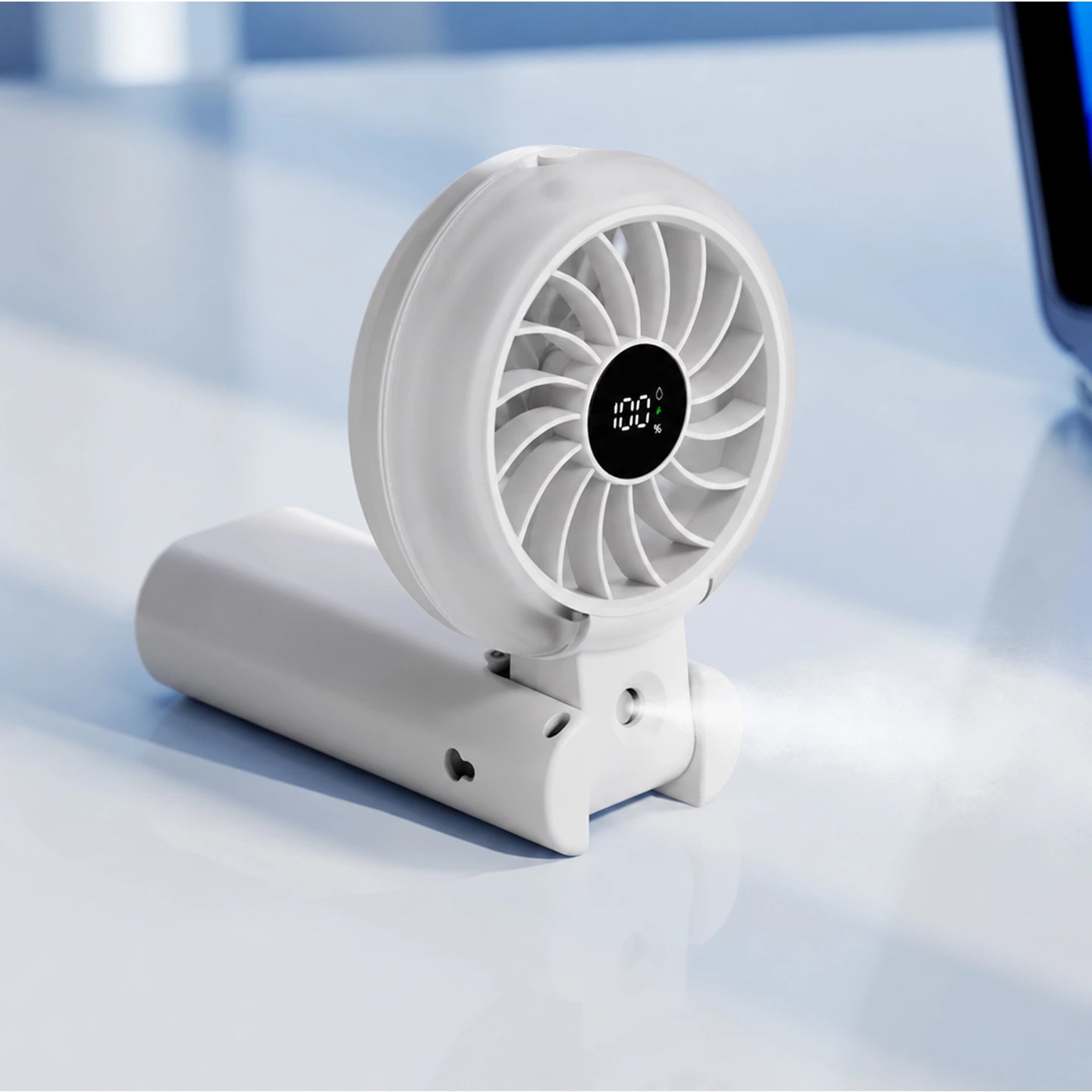

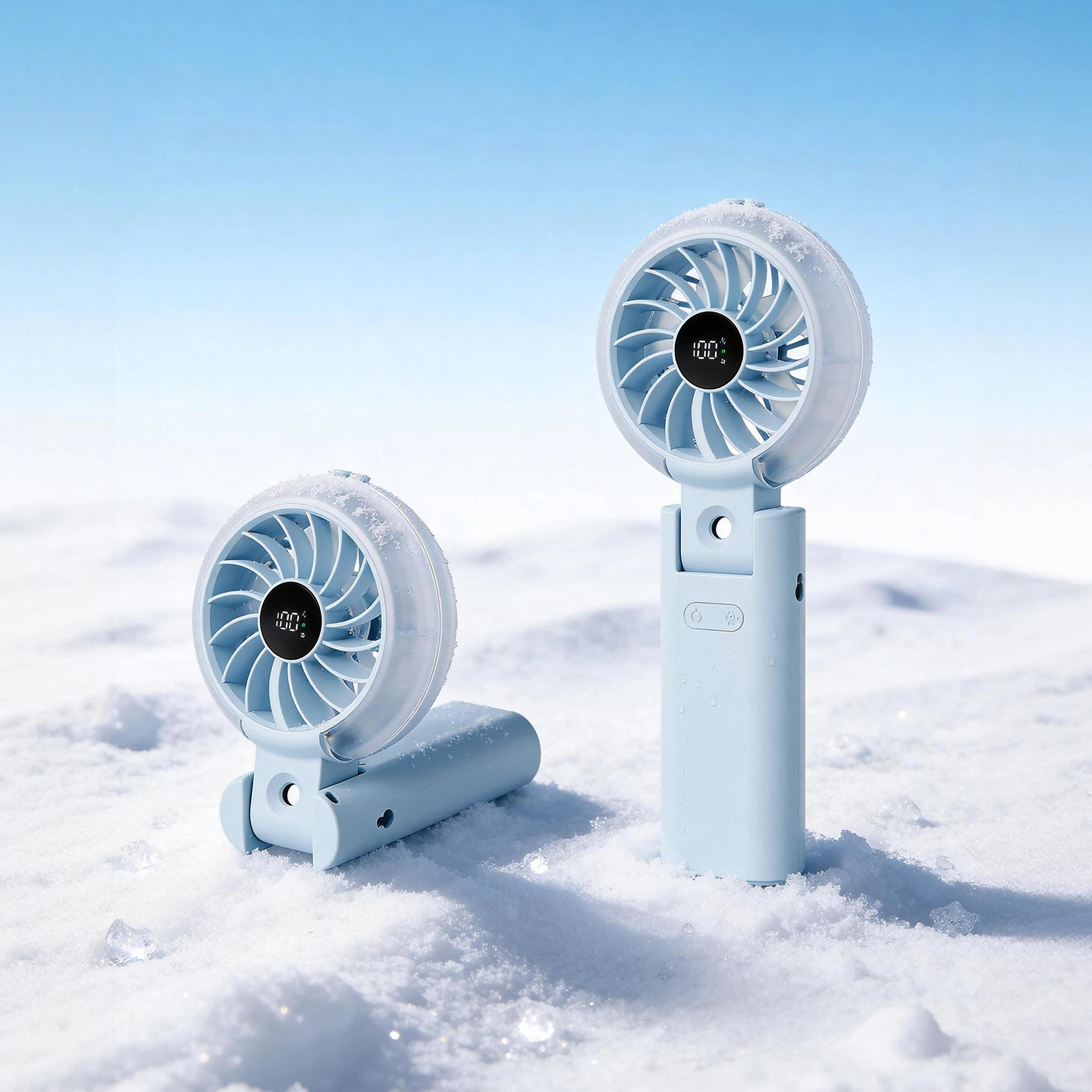

Foldable Design with Lanyard Compatibility
The KC-F19 measures 87 × 33 × 203 mm and can be folded for more convenient storage or positioning. A lanyard can be attached for carrying during travel, commuting or outdoor activities. At 216 g, the fan balances a portable format with its integrated battery, misting system and water tank.
Product Specifications
| Item | Specification |
|---|---|
| Product Name | Foldable Handheld Misting Fan with Dual Spray Modes |
| Model | KC-F19 |
| Manufacturer | Chaozhou Tongheng Technology Co., Ltd. |
| Launch Year | 2027 |

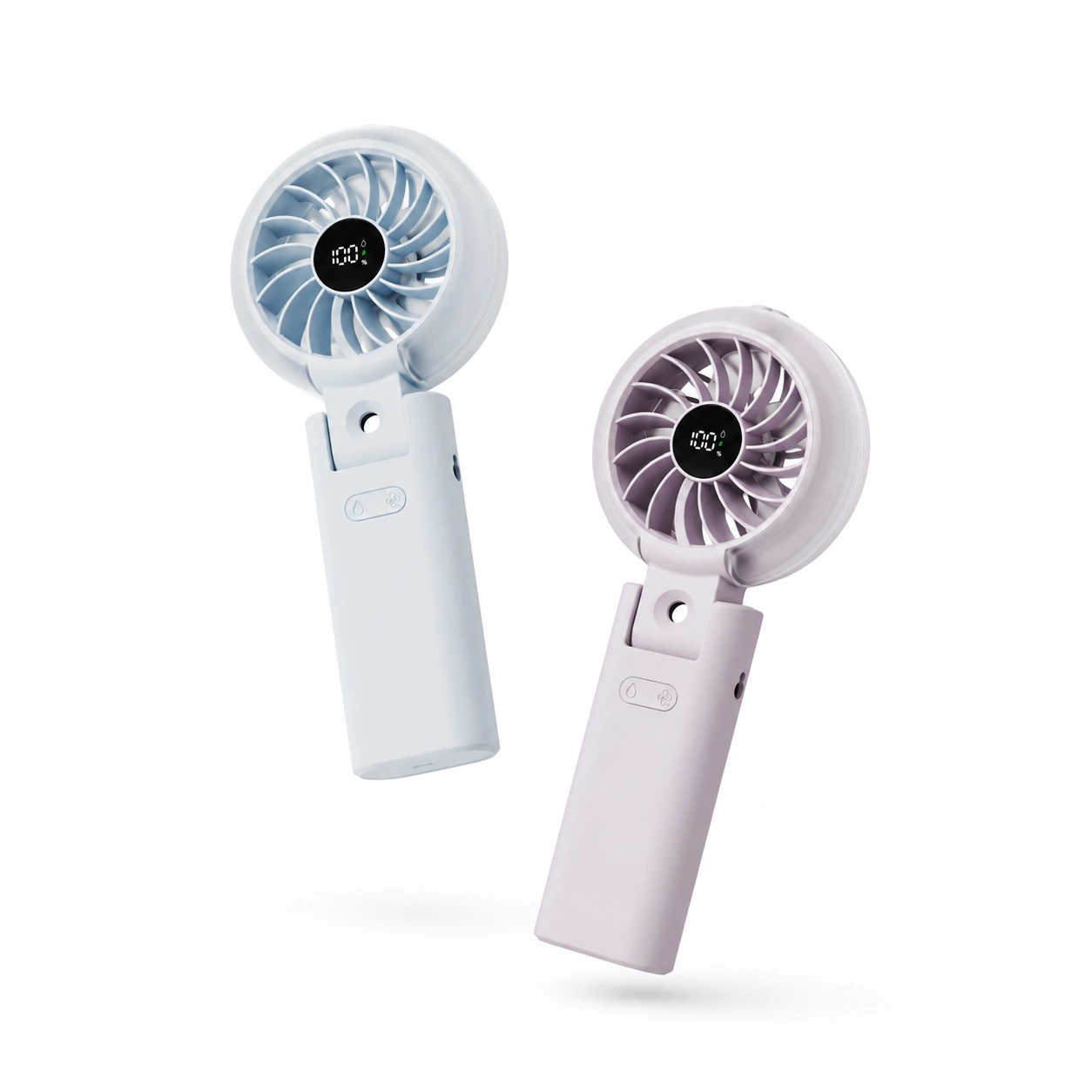

| Colors | White, Light Blue, Light Purple |
| Product Dimensions | 87 × 33 × 203 mm |
| Battery Capacity | 3,600 mAh |
| Maximum Runtime | Up to 10 hours at the 1% setting |
| Maximum Air Speed | To Be Confirmed |
| Speed Levels | 100 |
Core Selling Points
| Feature | Buyer Benefit |
|---|---|
| 100-Level Airflow Adjustment | Gives users more control than conventional fixed-speed handheld fans |
| Dual Misting Modes | Supports continuous or intermittent spray for different cooling preferences |
| 25 mL Water Tank | Integrates misting into a compact personal-cooling format |
| 3,600 mAh Battery | Provides up to 10 hours of cordless fan operation |
| Foldable, Lanyard-Compatible Body | Supports convenient carrying, storage and multi-scenario use |
| Three Color Options | Helps retailers build coordinated or audience-specific product selections |
Designed for B2B Distribution
The KC-F19 combines airflow and misting in a visually demonstrable format suitable for seasonal and year-round personal-cooling programs. Its 100-level adjustment, dual misting modes, digital display and foldable structure provide clear selling points for product images, short videos, livestreams and in-store demonstrations.
Recommended sales channels include:
- Consumer electronics distributors
- Home appliance retailers
- Travel accessory stores
- Supermarkets and retail chains
- Outdoor and lifestyle retailers
- Online marketplaces
- Promotional gift suppliers
- Private-label appliance brands
Each KC-F19 has a 90 × 36 × 208 mm retail box, with 60 units packed per master carton. The model can be positioned above basic non-misting handheld fans or included in portable cooling ranges alongside compact desk fans, neck fans and rechargeable travel appliances.
OEM and ODM Services
Chaozhou Tongheng Technology Co., Ltd. provides customization support for brands, importers, distributors, retailers and e-commerce businesses developing portable fan programs for different markets.
Available services include:
- Custom logo printing
- Product color customization
- Retail packaging design
- Instruction manual customization
- Barcode and product labeling
- Charging cable configuration
- Accessories and gift-set packaging
- Function adjustment
- Appearance modification
- New product development
Customization availability and MOQ depend on the selected product configuration, color, logo process, packaging requirements and order quantity.
Frequently Asked Questions
What distinguishes the KC-F19 from a standard handheld fan?
The KC-F19 combines 100-level airflow adjustment with continuous and intermittent misting. It also includes a digital display, a foldable body, lanyard compatibility, a 25 mL water tank and a 3,600 mAh rechargeable battery.
How do the KC-F19 misting modes work?
Users can select continuous misting for steady spray or intermittent misting for periodic spray. The exact control sequence should be confirmed in the final operating manual. Only clean water and approved filling procedures should be used according to the supplied instructions.
How long can the KC-F19 provide mist?
The 25 mL water tank provides approximately 15–32 minutes of misting. Actual misting time may vary with the selected spray mode, water level and operating environment. Continuous misting includes a 20-minute automatic shut-off protection function.
Does the 20-minute protection function turn off the entire KC-F19?
The supplied information confirms automatic shut-off protection after 20 minutes of continuous misting. Whether this function stops only the mist or also affects fan operation is To Be Confirmed according to the final KC-F19 control program.
What is the maximum battery runtime of the KC-F19?
The KC-F19 provides up to 10 hours of fan operation at the 1% setting. Runtime decreases as airflow increases, reaching approximately 2.5 hours at the 100% setting under the supplied test conditions.
How long does the KC-F19 take to charge?
The stated charging time is approximately 2.5 hours using the required charging conditions. Rated input is DC 5.0 V/2.0 A, operating current is 0.2–1.2 A, and rated power is no more than 10 W.
Are KC-F19 samples and OEM/ODM customization available?
Sample availability should be confirmed according to the required configuration. Customization options may include logos, product colors, retail packaging, manuals, barcodes, labeling, charging cable configuration and selected functional or appearance modifications.
What certificates and test reports are available for the KC-F19?
Available certificates and test reports depend on the KC-F19 product version, battery configuration and destination market. Please contact us with the target market and required compliance standards for model-specific documentation.
Contact Us
Contact us for:
- Product specifications
- Wholesale quotations
- Sample requests
- OEM and ODM customization
- Packaging solutions
- Compliance documents
- Production lead times
Email: inquiry@kinscoter.com
Manufacturer: Chaozhou Tongheng Technology Co., Ltd.
Location: Chaozhou, Guangdong, China
Send us your target market, estimated order quantity and customization requirements to receive a detailed quotation.
