Parameter

Model Number:AC-01

Capacity (CFM):35-40

Dimensions (L x W x H (Inches):300*190*190 mm

Power (W):5

Voltage (V):5

Type:Activated Carbon Air Filter

Installation:usb

Application:Hotel, Garage, Household

Power Source:usb

PM CADR:≥95%

Gaseous Pollutant CADR:56.8

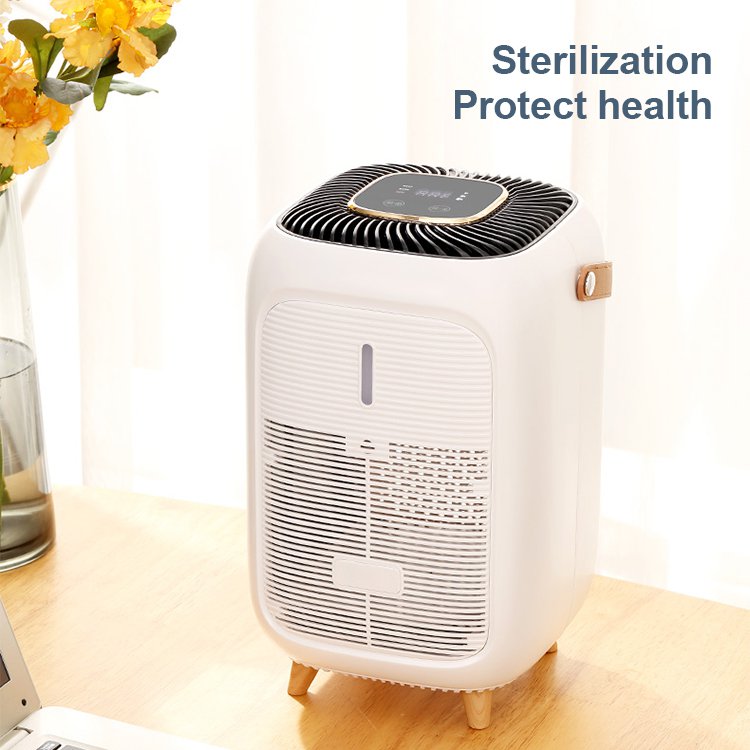

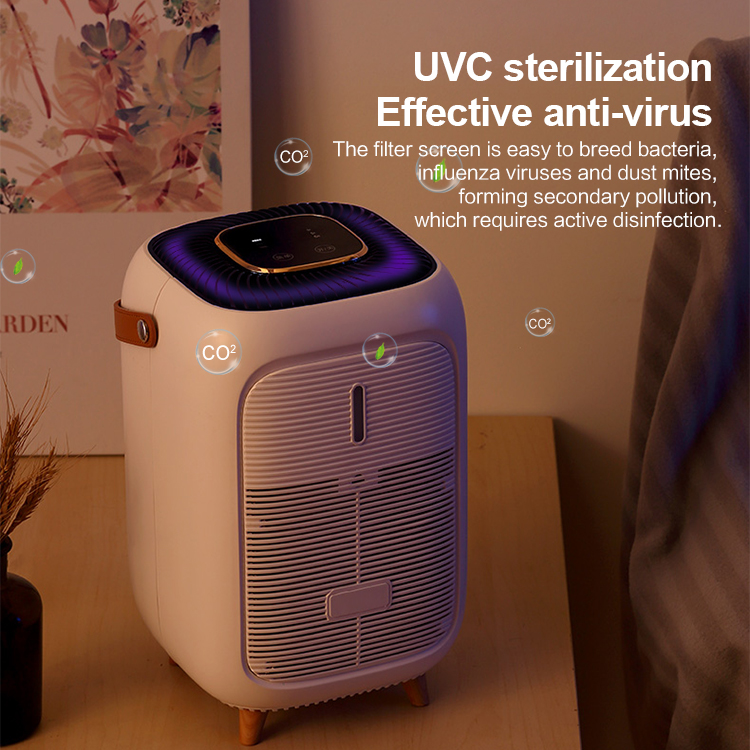

Featured Function:UV sterilization

Recommended Room Size（square feet）:10-20 Square meter

Air Quality Display:Yes

Keyword:Formaldehyde removal air purifier

Particle filtration efficiency:≥95%

Filter:HEPA H13 (with silver ion filter)

Service life of filter element:3000 hours

Waterproof grade:IPX0

Product weight:1370g

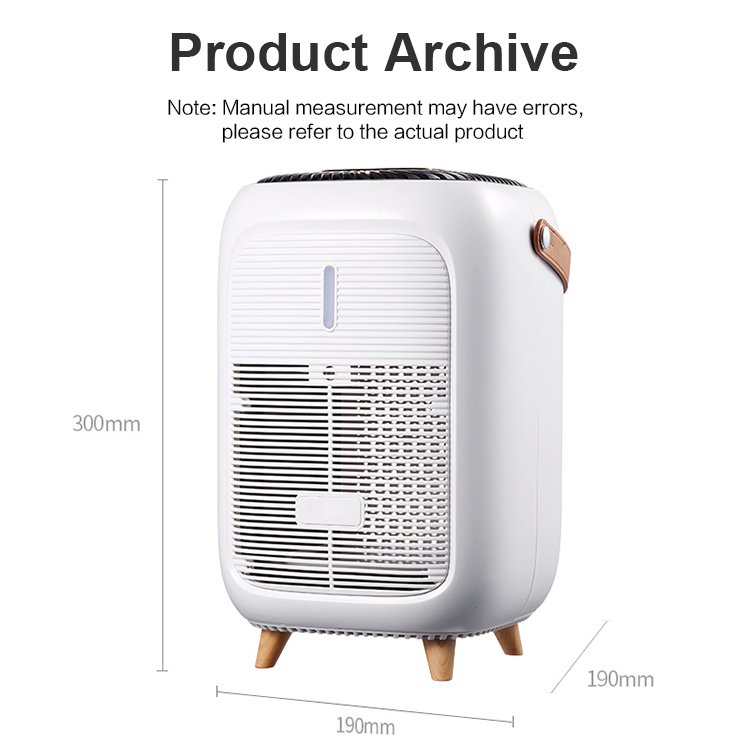

Product size:190mm*190mm*302mm

Sleep mode:Yes

Noise:≤36dB

Service:Sample, OEM logo

Features

HEPA H13 FILTRATION

Trusted to remove 99.9% of harmful particles including odors, VOCs, smoke, pollen, pet dander, dust, smog, contaminants, and more down to 0.1 microns in size. Captures finer particles than HEPA H13 .

SPECIFICATION OF SCREEN

The first layer: nano silver ion coating, can effectively resist mold.
The second layer: h-13hepa filter layer, which can effectively filter 99.97% of harmful particles.
The third layer: activated carbon cotton, can effectively remove odor.
Countdown reminder replacement time is 3000 hours.

FUNCTION DESCRIPTION

1. Please use a power adapter with output voltage of DC5V and current of 1A or above.
2. After connecting the USB cable with the power adapter, plug it into the USB power input interface of the product (only suitable for micro and type-C interfaces).
3. After the power is turned on, all the function indicators and digital tubes will be on once, and the buzzer will sound once. If there is no other operation, it will automatically enter the standby mode.
4. In the standby mode, press o on / off key to start the machine and enter the "automatic" function automatically. Then press the "menu" key to select the function. Each time you press the "menu" key, the function indicator will switch from "1st", "2nd", "3rd", "sleep" to "automatic".
5. Function mode description: sleep mode, in which the fan speed is the lowest, other lights will be off, and only the corresponding function indicator will be on; Automatic mode, which will automatically select the working gear of the fan according to the air quality. When the air quality value is 1-50, the first gear wind speed is selected for air purification. When the air quality value is 51-100, the second gear wind speed is selected for air purification. When the air quality value is 101-500, the third gear wind speed is selected for air purification“ The first gear, the second gear and the third gear are respectively the gear adjustment with slow to fast air purification wind speed.
6. Fault description: in normal operation, open the door of the filter bin, the fan will stop rotating, and the digital tube will display "E1". After the filter bin door is covered back, the fault is eliminated and the normal working state is restored.
7. Replace the filter screen: when the red indicator light of the filter screen icon starts flashing, it will prompt to replace the filter screen. At this time, open the filter bin door, take out the old filter and replace it with a new one. After replacing the filter screen, long press the "on / off o" key for 3-5 seconds to clear the flicker of the indicator light of the filter screen, and the service life of the filter screen will be counted for a new round（ Filter life is 3000 hours)

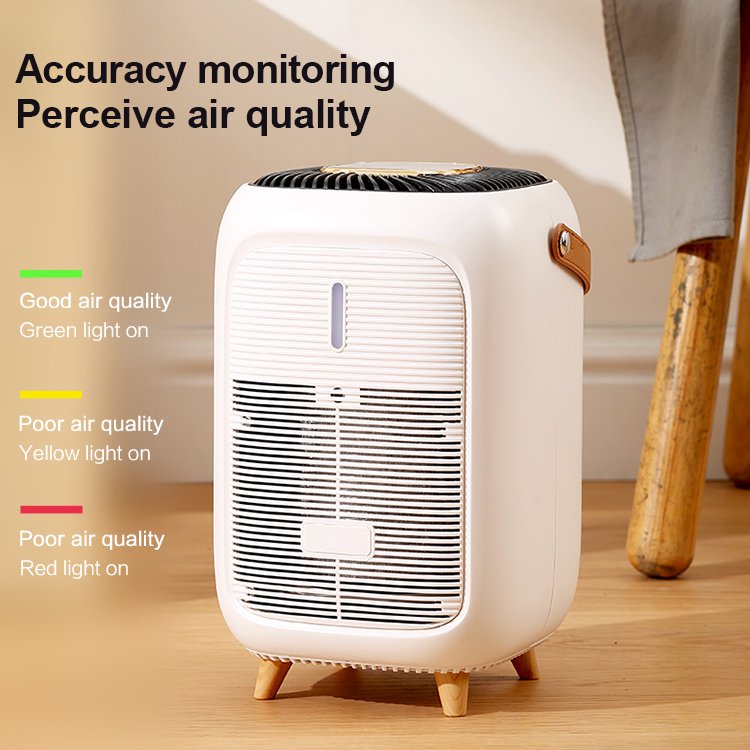

8. Air quality numerical display:
8.1 power on preheating: the indicator bar will display the color of the corresponding value according to the air quality;
8.2 when the air quality is the best: the indicator light bar shows green, and the corresponding digital tube shows the value between 1-50;
8.3 when the air quality is normal: the indicator light bar shows yellow, and the corresponding digital tube shows the value between 51-100;
8.4 when the air quality is very poor: the indicator light bar shows red, and the corresponding digital tube shows the value between 101-500;
